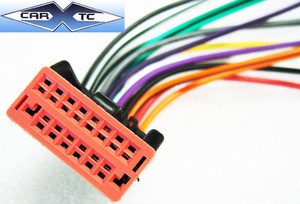

Ford ECONOLINE VAN 02 2002 FACTORY Car Stereo Wiring installation Harness OEM Radio install wire

• Installation Parts - Radio Wire Harness for OEM / RE-INSTALL STOCK SYSTEM

• FACTORY/ OEM / STOCK RADIO PLUG

FEATURES

• OEM / STOCK or Reverse wire harnesses are to RE-connect an ORIGINAL radio
• REPLACE DAMAGED OR CUT Harness (Usually from bad install or theft)

• These are the same harnesses the Professional Install shops use.

• Save Money - Do It Yourself and get the same results

Example of OEM/STOCK RADIOS:

• (AUDI, FORD, GM, HONDA) or any RADIO that came stock originally in the car.

• When RE-installing a STOCK Radio into Car with a cut plug - this is Needed

Wire Function	COLOR
EIA WIRING COLOR CODE
12 Volt Ignition/ Acc. 12 Volt Battery/Memory Ground Power Antenna Amp Turn-On Amp Ground Illumination Dimmer Phone Mute Right Front Spk+ Right Front Spk - Left Front Spk+ Left Front Spk- Right Rear Spk+ Right Rear Spk- Left Rear Spk+ Left Rear Spk-	Red Yellow Black Blue Blue/White Black/White Orange Orange/White Brown Gray Gray/Black White White/Black Violet Violet/Black Green Green/Black

• THE OEM Wire Harnesses are EIA color coded - as listed above

• A wire diagram of your(SPECIFIC CAR SHOULD BE USED)

• Most Car Makers Use a Variety of Different Colored Wiring.

CONNECTION USES:

1. ONCE THIS HARNESS IS RE-WIRED TO CAR, YOU CAN RE-INSTALL YOUR STOCK RADIO
2. USE THIS HARNESS ALONG WITH AFTERMARKET HARNESS TO INSTALL AN AFTERMARKET RADIO.
   • (IF DESIRE IS TO INSTALL AFTERMARKET STEREO - YOU WILL NEED THIS HARNESS + THE AFTERMARKET HARNESS (if missing stock radio plug)
   • (Also these plugs are handyif adding a factory radio upgrade)
